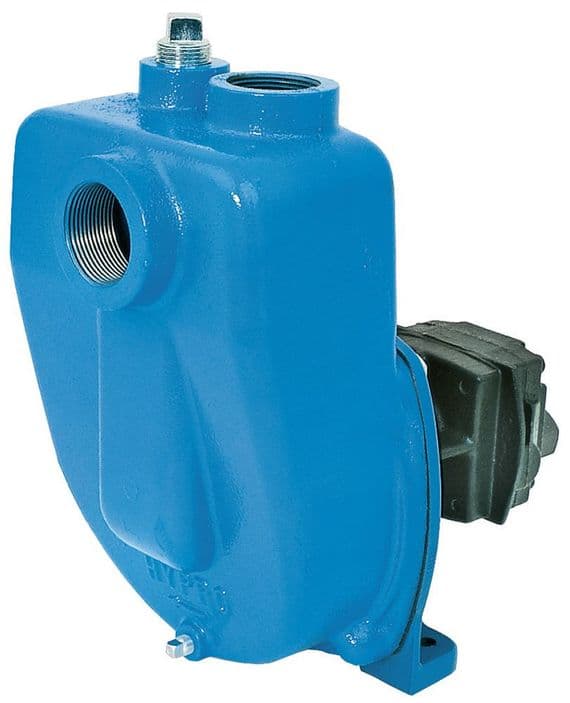

Hypro 9300SP series

Hypro 9300SP Series
Part No	Max Bar	Max Lpm	Inlet	Outlet	Oil Lpm	Oil Bar
9303C-HM1C-SP	8.9	461	1 1/2"F	1 1/4" F	49	150
9303C-HM4C-SP	6.7	374	1 1/2" F	1 1/4"F	26.5	150
9305C-HM3C-SP	10.6	673	2" F	2" F	76	150
Hydraulic motor ports = 1/2" NPTF inlet , 3/4" NPTF outlet Available in cast iron and 316 stainless steel for extended pump life Hydraulic motor drive (for open center, closed center and load-sensing systems) Max. fluid temperature: 140°F/60°C Impeller: Cast Iron models Nylon; (GTX available) Stainless Steel models Polypropylene Motor: internal gear gerotor Hydraulic ports: 12" NPT inlet, 34" NPT outlet Max. motor psi: 3000 (bar: 207) Pump seals: Cast Iron models Viton/ceramic standard; Life Guard silicon carbide (B) available; Stainless Steel models Life Guard silicon carbide standard Life Guard seals are the industry standard on OEM equipment Hydraulic motor seal: double-lip Teflon® and case drain available Weight: 38 lbs./17.3 kg
